Products Description
Chemical composition(1):
|
Chemical |
Fe |
C |
Si |
Mn |
S |
p |
|
|
Spec (%) |
99.60Min. |
0.003Max. |
0.01Max. |
0.2Max. |
0.004Max. |
0.005Max. |
|
|
Chemical |
Al |
Cu |
Ni |
Cr |
Ti |
CFB(A/m) |
|
|
Spec (%) |
0.054Max. |
0.01Max. |
0.01Max. |
0.01Max. |
0.01Max |
20.2 |
29.2 |

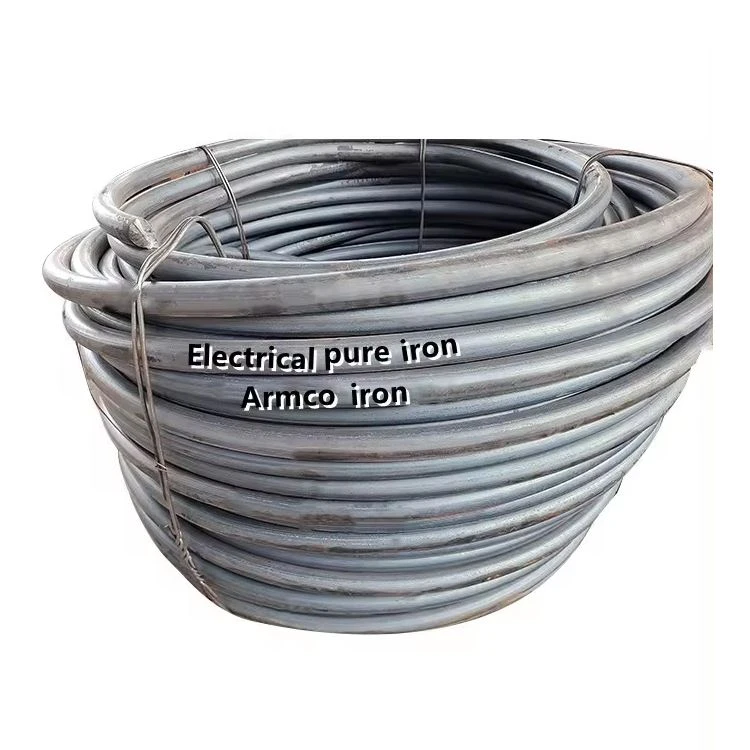

Pure Iron Coils for Surgical Instruments | Beilun Metal
High-Precision, Bio-Safe Iron Coils for Minimally Invasive and Robotic Surgical Tools
Product Overview
Beilun Metal's surgical-grade Pure Iron Coils are engineered to empower next-generation surgical instruments with micron-level actuation accuracy and uncompromising biocompatibility. Featuring 99.99%+ purity and ultra-smooth surfaces (Ra ≤0.05μm), our coils meet ISO 7153-1 and ASTM F3184 standards for materials in contact with human tissue, ideal for laparoscopic tools, electrosurgical devices, and AI-driven robotic systems.
Key Features & Benefits
Surgical-Grade Material Safety
Iron Purity: ≥99.99%
Critical Contaminant Control: Chromium (≤0.001%), Nickel (≤0.0008%), Cytotoxic Elements (Cu/Pb <1ppm)
Compliance: ISO 10993-5 (Non-cytotoxic), USP Class VI (Plastic/Elastomer Compatibility).
Nanoscale Precision for Micro-Instruments
Thickness: 0.01mm–0.5mm (ultra-thin for micro-forceps & articulating joints)
Tolerance: ±0.002mm (ensures seamless integration with piezoelectric actuators)
Edge Quality: Laser-microfused edges prevent particulate shedding during surgery.
Sterilization & Corrosion Resistance
Autoclave Cycles: 1,000+ cycles at 135°C without oxidation (per AAMI ST79)
Chemical Resistance: Withstands hydrogen peroxide plasma, peracetic acid, and alcohol immersion.
Surface Options: Electropolished (Ra ≤0.05μm) or diamond-like carbon (DLC) coating for wear resistance.
Zero Magnetic Interference
Residual Magnetism: <0.01 mT (prevents interference with intraoperative imaging/navigation)
Core Loss: <0.5 W/kg (at 0.3T, 100Hz) for precise haptic feedback in robotic systems.
Applications in Surgical Instruments
Robotic Surgery: Forceps actuation cores, da Vinci®-style wrist joints.
Electrosurgery: Bipolar forceps electrodes, RF ablation coil drivers.
Endoscopy: Articulating camera positioners, biopsy channel shutters.
Orthopedic Tools: Smart drill torque sensors, bone cement mixing actuators.
Technical Specifications
| Parameter | Value |
|---|---|
| Material Grade | Surgical Pure Iron (Type SG-9) |
| Density | 7.83 g/cm³ |
| Hardness | 80–90 HV (annealed) |
| Surface Roughness | Ra ≤0.05μm (post-electropolish) |
| Certification | ISO 13485, FDA 21 CFR 820, MDR Annex I |
Why Choose Beilun Metal?
Surgical Innovators' Partner: Supplies 3/5 Top global surgical robotics brands.
Cleanroom to OR Traceability: Each batch includes TOC (Total Organic Carbon) and endotoxin (<0.25 EU/ml) reports.
Single-Use Device (SUD) Solutions: Cost-optimized coils for disposable instrument lines.
Rapid Validation Support: 48-hour material compatibility testing for FDA 510(k) submissions.
Sustainability Commitment
Zero halogenated packaging; 100% recyclable coils compatible with medical waste steam sterilization.
FAQ
Q: Are your coils MRI-safe for hybrid OR environments?
A: Yes! Our non-ferritic structure and <0.01 mT remanence meet ASTM F2503 MRI safety standards.
Q: Can you provide coils pre-coated with Parylene for insulation?
A: Yes, Parylene C/N coatings (2–25μm) applied in ISO Class 7 cleanrooms.
Q: How do you prevent galvanic corrosion in saline environments?
A: Optional titanium nitride (TiN) coating reduces galvanic potential to <0.1V vs. stainless steel.
Q: MOQ for prototype trials?
A: R&D batches as low as 5kg with full biocompatibility documentation.
Contact Us
Redefine surgical precision with Beilun Metal's ultra-clean iron coils. Request an electropolishing validation kit or OR compatibility guide!
