Products Description

Chemical composition(1):

Chemical	Fe	C	Si	Mn	S	p
Spec (%)	99.60Min.	0.003Max.	0.01Max.	0.2Max.	0.004Max.	0.005Max.
Chemical	Al	Cu	Ni	Cr	Ti	CFB(A/m)
Spec (%)	0.054Max.	0.01Max.	0.01Max.	0.01Max.	0.01Max	20.2	29.2

Chemical composition(2):

Chemical	Fe	C	Si	Mn	S	p
Spec (%)	99.73Min.	0.002Max.	0.01Max.	0.19Max.	0.004Max.	0.009Max.
Chemical	Al	Cu	Ni	Cr	Ti	CFB(A/m)
Spec (%)	0.051Max.	0.01Max.	0.01Max.	0.01Max.	0.01Max	8.2	8.5

Chemical composition(3):

Chemical	Fe	C	Si	Mn	S	p
Spec (%)	99.60Min.	0.004Max.	0.01Max.	0.14Max.	0.005Max.	0.011Max.
Chemical	Al	Cu	Ni	Cr	Ti
Spec (%)	0.26Max.	0.02Max.	0.01Max.	0.02Max.	0.01Max

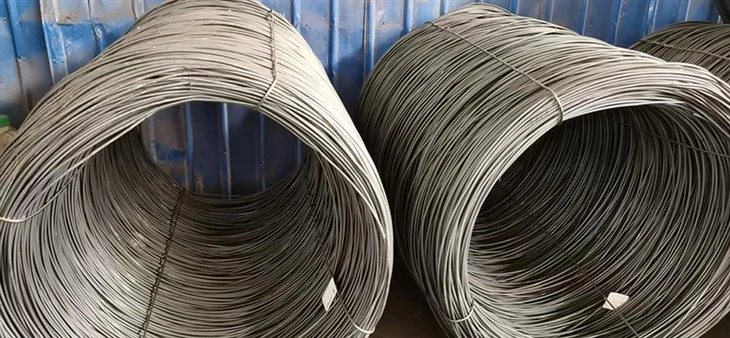

Pure Iron for Magnetic Shielding and Wire Rods

Pure iron, particularly that used for magnetic shielding, is a high-quality steel with an iron content exceeding 99.85%. This material is characterized by its low carbon, sulfur, and phosphorus content, adhering to international standards.

Composition and Properties

The chemical composition of pure iron primarily includes elements like carbon (C), silicon (Si), manganese (Mn), phosphorus (P), sulfur (S), and aluminum (Al). Among these, Si and Al are considered beneficial elements as they can narrow the austenite phase field and, when present in appropriate amounts, reduce the coercivity, thereby enhancing the magnetic grade.

Pure iron exhibits excellent electromagnetic properties, making it suitable for applications requiring magnetic shielding. Its high magnetic permeability allows it to effectively redirect magnetic field lines, thus providing shielding from magnetic interference.

Applications

Pure iron wire rods, specifically those intended for magnetic shielding, are subject to stringent quality requirements in terms of cold heading performance, electromagnetic properties, and surface quality. These wire rods are primarily used in the manufacture of electromagnetic components, electromagnetic cores, and other high-end industrial applications in the electrical, telecommunications, instrumentation, and defense sectors.

Production Process

The production of electromagnetic pure iron wire rods involves advanced refining techniques such as BOF+LF+RH, which ensures the purity of the steel and the stability of its properties. Key parameters during smelting, continuous casting, heating, and rolling are scientifically controlled to achieve optimal performance.

Quality Control

The finished wire rods undergo rigorous quality control checks, including dimensional accuracy, mechanical strength, and magnetic property tests. These checks ensure the rods meet the required standards for effective magnetic shielding.

Through these precise manufacturing steps, iron wire rods achieve the necessary properties for efficient magnetic shielding, making them suitable for use in various applications such as electronic devices, medical equipment, and industrial machinery.

Package

Pure iron is typically packaged with rust-preventive oil, wrapped in plastic film, and secured with plastic or metal straps. It is then placed on wooden pallets or in wooden crates, sometimes using moisture-proof paper or vacuum packaging for extra protection during transportation and storage.
